| 氮气发生器的详细资料： |
|
氮气发生器采用桶状结构电解池，具有电解面积大、池温低、产气量大、纯度高等优点。气路系统设有碱液回流及稳压装置，使用安全方便、寿命长、可靠性高、操作简单。可为国内外各种不同类型的气相色谱仪提供载气，是一款传统的电化学分离氮气的气体发生器，主要技术参数： |
同时供应：氮氢空一体机，空气发生器，氢气发生器，裂解进样器，顶空进样器，热解析仪，分光光度计，电子天平，干燥箱，化学试剂，玻璃仪器，标气，钢瓶气

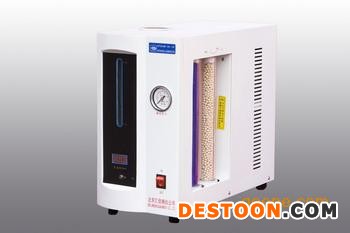

Nitrogen generator details:
Nitrogen generator with a barrel-type electrolytic cell, with electrolytic area, low temperature, gas production, high purity advantages. Gas system with lye back and regulator device, the use of safe and convenient, long life, high reliability, simple operation. Can be used for a variety of different types of gas chromatography at home and abroad to provide carrier gas, is a traditional electrochemical separation of nitrogen gas generator, the main technical parameters:
Nitrogen purity: 99.999%
Output flow: 0-500ml / min
Output pressure: 0-0.4MPa
Power supply voltage: 220V ± 10% 50 / 60Hz
Maximum power: 20W
Overall dimensions: 20 × 200 × 420mm (L × W × H)
Weight: 12kg;
At the same time supply: nitrogen and air-one machine, air generators, hydrogen generators, cracker injector, headspace sampler, thermal analyzer, spectrophotometer, electronic balance, drying, chemical reagents, glass equipment, standard gas , Cylinder gas
